Thanks!

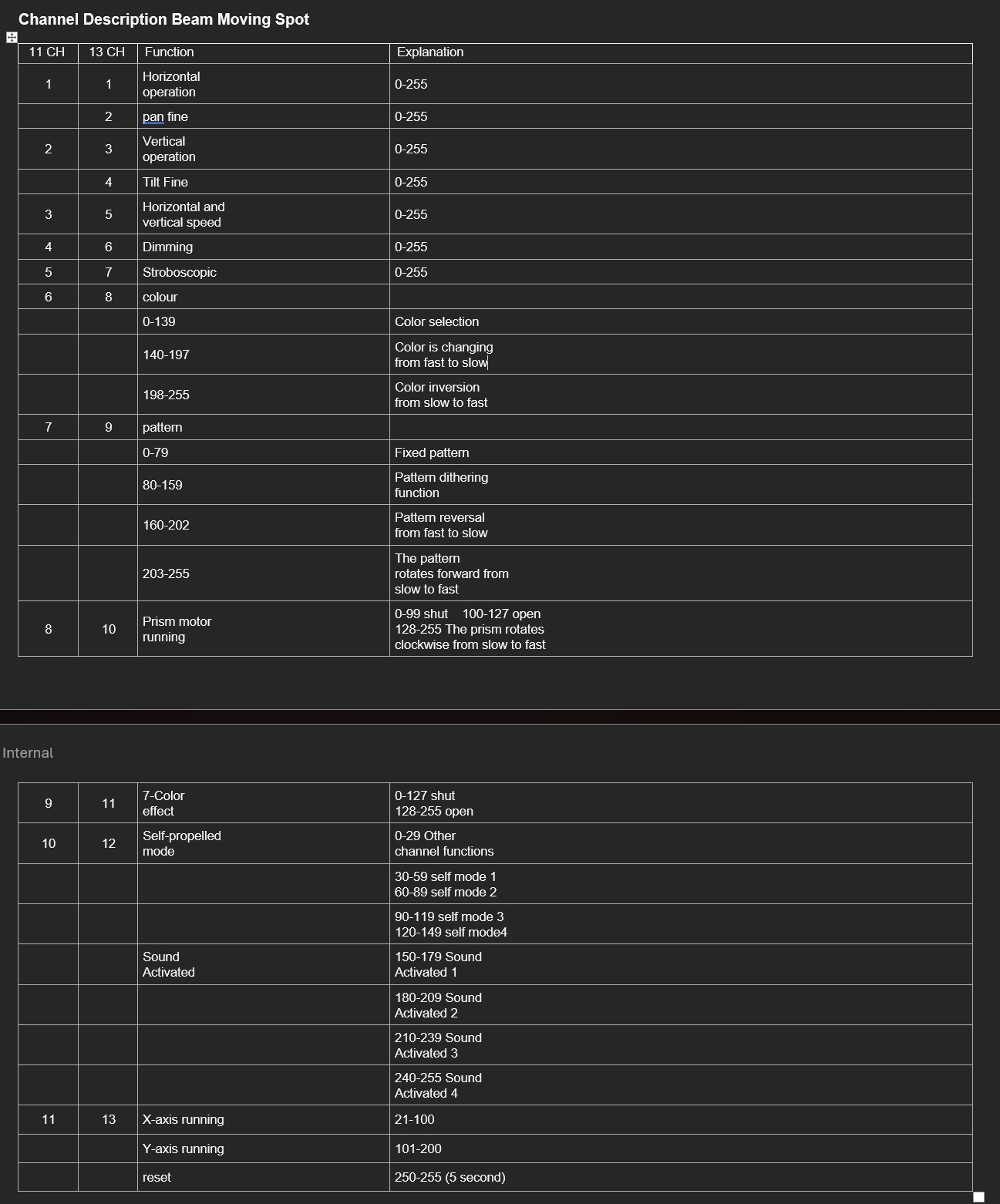

- Yiflamefly-230W-BeamMovingHead.jpg (224.88 KiB) Viewed 2 times
1 1 Horizontal operation 0-255
2 pan fine 0-255
2 3 Vertical operation 0-255
4 Tilt Fine 0-255
3 5 Horizontal and vertical speed 0-255
4 6 Dimming 0-255
5 7 Stroboscopic 0-255
6 8 colour
0-139 Color selection
140-197 Color is changing from fast to slow
198-255 Color inversion from slow to fast
7 9 pattern
0-79 Fixed pattern
80-159 Pattern dithering function
160-202 Pattern reversal from fast to slow
203-255 The pattern rotates forward from slow to fast
8 10 Prism motor running 0-99 shut
100-127 open
128-255 The prism rotates clockwise from slow to fast
9 11 7-Color effect 0-127 shut / 128-255 open
10 12 Self-propelled mode 0-29 Other channel functions
30-59 self mode 1
60-89 self mode 2
90-119 self mode 3
120-149 self mode4
Sound Activated 150-179 Sound Activated 1
180-209 Sound Activated 2
210-239 Sound Activated 3
240-255 Sound Activated 4
11 13 X-axis running 21-100
Y-axis running 101-200
reset 250-255 (5 second)
